What is a Mercedes-Benz P06DA00 Oil Pump Control Valve Failure?

If the Check Engine Light comes on in your Mercedes-Benz and a scan returns P06DA00, the words oil pump make the problem sound immediately catastrophic. Oil pressure is, after all, one of the few things standing between a healthy engine and a very expensive engine repair.

But this particular Mercedes fault is more interesting than that. On the 2020 Mercedes-Benz GLC 300 2.0-liter turbo shown in the photographs below, the repair involved the electrical control system for the engine's oil pump — specifically the oil pump control valve and its wiring harness. The failed components aren't large. Getting to them is another story.

What Does Mercedes Fault Code P06DA00 Mean?

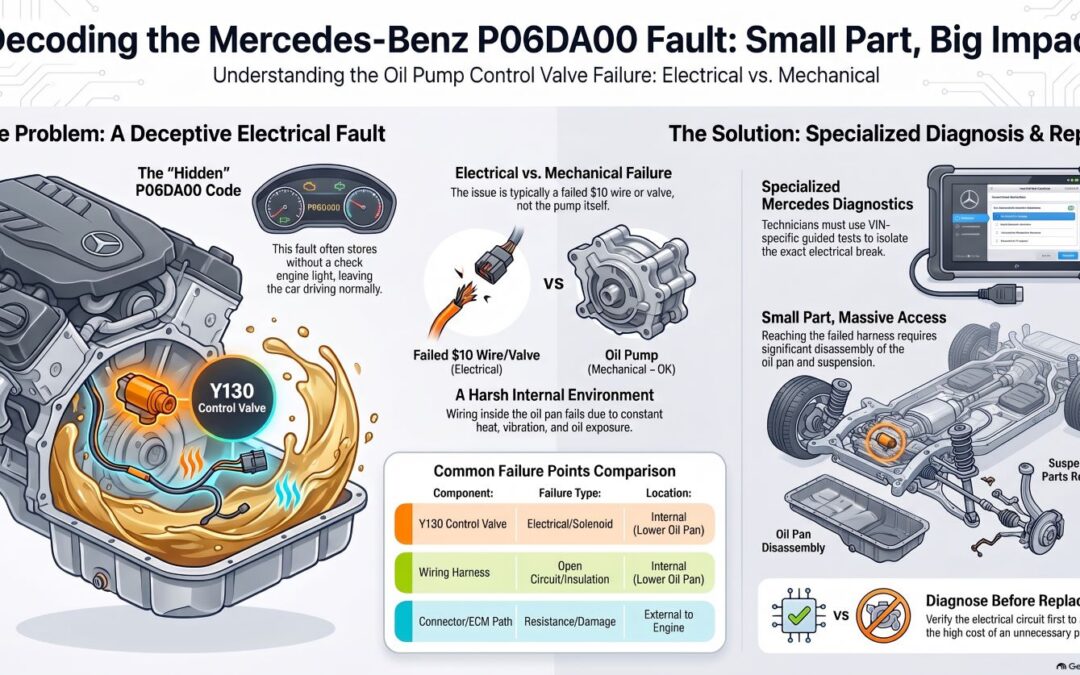

P06DA00 refers to an electrical fault or open circuit involving actuation of the engine oil pump control valve. On applicable Mercedes-Benz engines, that valve is commonly identified in diagnostic information as Y130.

The 2020 Mercedes-Benz GLC 300 uses a 2.0-liter turbocharged four-cylinder engine with an electronically controlled oil-pump system. An old-fashioned lubrication system simply produces oil pressure according to engine speed and pump design. A modern variable oil-pump system regulates output according to what the engine actually needs at that moment.

Why? Efficiency. Your engine doesn't require the same oil-pump output idling in the driveway that it requires under heavy load. Controlling the pump reduces unnecessary parasitic drag while still delivering the lubrication the engine needs. That's good engineering — until the electrical component controlling the system stops communicating properly.

What Is the Y130 Oil Pump Control Valve?

Think of Y130 as the electrical traffic cop for the oil pump's pressure-control system. The engine-management computer commands the valve electrically, and the valve helps control the oil-pump operating strategy according to engine conditions.

If the computer commands the valve but sees an electrical response outside the expected range — including an open circuit — it can store P06DA00. The important word is electrical. The cause could involve the valve itself, the wiring, or an electrical connection. That is exactly why testing comes before replacing parts.

The Real Repair: 2020 Mercedes-Benz GLC 300 2.0L

The Mercedes-Benz shown here is a 2020 GLC 300 with the 2.0-liter turbocharged M264-family engine. This isn't a stock photograph — it's an actual Mercedes-Benz repaired at Autoscope European Car Care. During diagnosis, the oil pump control valve circuit and associated wiring required attention.

Looking at the harness in a technician's hand, you might reasonably wonder how something that small creates such a substantial repair. The answer is location. The oil pump control components and associated wiring sit down in the lower engine and oil-pan area. The part isn't the hard part. Getting to the part is.

Why Does the Mercedes Oil Pump Control Harness Fail?

The lower portion of an engine is a demanding environment for electrical components. Over thousands of miles, the system experiences:

• Continuous engine heat
• Repeated heating and cooling cycles
• Engine vibration
• Exposure to engine oil
• Aging of electrical insulation
• Connector and terminal deterioration
• Potential internal failure of the control-valve solenoid

Once electrical continuity or resistance moves outside what the engine-management system expects, P06DA00 may be stored.

What Are the Symptoms of P06DA00?

This is one of the more deceptive Mercedes-Benz faults, because the vehicle may continue to feel perfectly normal. Depending on the specific failure and any other faults present, a driver might notice:

• A Check Engine Light
• P06DA00 stored in the engine control module
• No obvious change in engine performance
• No unusual engine noise
• No apparent drivability problem
• A fault that returns after being cleared

That last one matters most. Clearing a fault code is not the same as fixing the vehicle. If P06DA00 returns, the next step isn't to keep clearing it — it's to find out why it keeps coming back.

Does P06DA00 Mean Your Mercedes Needs a New Oil Pump?

No. If there's one thing Mercedes owners take away from this article, we'd like it to be that.

P06DA00 identifies an electrical problem involving the oil pump control-valve circuit. It does not automatically condemn the complete mechanical oil pump. That distinction is expensive, because replacing an oil pump based solely on the wording of a diagnostic trouble code is a very costly way to diagnose a car.

Instead, the technician needs to determine whether the problem originates in:

• The Y130 control valve
• The internal wiring harness
• A connector or terminal
• The external electrical circuit
• Another electrical condition
• Or the oil-pump assembly itself

How Should Mercedes P06DA00 Be Diagnosed?

There are repairs where replacing the obvious part might be tempting. This shouldn't be one of them. Because access to the internal components requires significant labor, you want to be reasonably certain of the diagnosis before the engine starts coming apart.

1.


   Start with a complete Mercedes-Benz diagnostic scan

   The first step is a full vehicle scan using Mercedes-capable diagnostic equipment. We're looking for much more than the code itself: is the fault current or stored? How often has it occurred? Are other engine or voltage-related faults present? What does the vehicle's diagnostic test plan indicate? Can the Y130 valve be actuated properly, and does electrical testing indicate an open circuit? A generic code reader can tell you a fault exists. It takes diagnosis to determine what caused it.

2.


   Test the circuit before opening the engine

   Before major disassembly, the accessible portion of the circuit should be evaluated. The objective is to establish whether the problem originates outside the engine or points toward the internally located valve and harness. That matters, because once diagnosis leads into the oil-pan area, labor becomes a much larger part of the repair.

3.


   Access the oil pump control valve and harness

   When testing indicates an internal problem, the lower engine must be opened sufficiently to reach the components. Modern vehicles are densely packaged — on a Mercedes-Benz GLC, the suspension, drivetrain, subframe, oil pan and surrounding components all compete for space. Safe, clean access to an internal component therefore requires considerable disassembly.

Look carefully at that photograph. This is the part of the story you don't see when someone says, "it just needs a little wiring harness."

Why Is P06DA00 Expensive to Repair?

Customers sometimes look up the price of a component online and wonder why the repair costs substantially more. The answer is simple: you're not paying someone just to install the part. You're paying them to reach it.

Imagine a $20 seal buried behind six hours of disassembly. It's still a $20 seal. It's not a $20 repair.

Depending on the exact GLC configuration and the repair required, accessing the internal oil-pump control components can involve removing or repositioning components underneath the engine, opening the lower engine and oil-pan area, cleaning the sealing surfaces, installing the replacement components, resealing and reassembling everything correctly, refilling the engine with the proper Mercedes-approved oil, clearing the faults and verifying the repair. Suddenly that small harness in the photograph makes a lot more sense.

Should the valve and harness be replaced together?

Once you've invested the labor necessary to access a deeply buried component, the repair strategy deserves careful consideration. If testing and physical inspection indicate a problem with the internal valve and harness assembly, the technician should evaluate the condition of both and determine which components should be replaced according to the vehicle's diagnostic results and current Mercedes repair information.

Nobody wants to pay for the same major disassembly twice. But we don't advocate replacing parts simply because they happen to be nearby, either. Test, inspect, verify, then repair.

Can You Drive a Mercedes With P06DA00?

This deserves a more careful answer than you'll often find online. Don't treat P06DA00 as automatically meaning your engine is about to fail — and don't treat every oil-system warning as harmless, either.

P06DA00 itself describes an electrical control-circuit fault. The severity and the appropriate response depend on the particular vehicle, engine, accompanying faults and diagnostic results.

Can P06DA00 simply be cleared?

You can clear almost any fault code. That doesn't mean you've repaired anything. If P06DA00 was caused by an intermittent condition and Mercedes diagnostic procedures indicate no repair is necessary, that's one situation. But if an active electrical fault exists and the code repeatedly returns, clearing it merely removes the evidence temporarily. It's like resetting a circuit breaker that keeps tripping — eventually you need to find out why it keeps tripping.

Can You Prevent Oil Pump Control Harness Failure?

There is no published Mercedes interval telling owners to replace this harness every 30,000 or 50,000 miles. But several habits protect the lubrication system as a whole.

Why Mercedes-Benz Experience Matters

European automobiles have become extraordinarily sophisticated. That's part of what makes them enjoyable to drive. It's also why an experienced Mercedes-Benz technician approaches P06DA00 differently than someone entering the code into a search engine.

The objective isn't find code → replace part. It's verify the complaint, scan the vehicle, follow the diagnostic strategy, test the circuit, identify the failure, repair it correctly, then verify the repair. When reaching a $20 or $50 component can require hours of disassembly, that difference saves real money.

Because when someone tells you your Mercedes needs an oil pump, there's one question worth asking before authorizing the repair: "Are you sure it's the pump?"
